Chemical Name: 1,3-Bis(3-glycidoxypropyl)tetramethyldisiloxane

English Alias

1,1,3,3-Tetramethyl-1,3-Bis[3-(oxiranylmethoxy)propyl]disiloxane

Disiloxane,1,1,3,3-Tetramethyl-1,3-Bis[3-(2-oxiranylmethoxy)propyl]-

Epoxy Double End-capper

Glycidoxypropyl Terminated Tetramethyldisiloxane

CAS NO: 126-80-7

EINECS NO.: 204-803-9

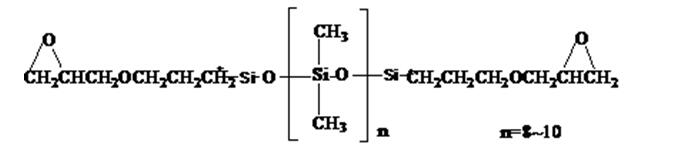

Chemical Structural Formula

Product Brief

This product code is IOTA 105-1000. The product function is mainly used as one-step synthesis raw material of different molecular weight epoxy silicone oil. The direct synthesis method has solvent-free, light color, crystal clear, simple process, convenient use and good reproducibility. And many other advantages.

Product Introduction and Application

Appearance: Light yellow transparent liquid

Molecular weight: M = 1000

Characteristics

Synthetic silicone oil does not require solvent, light color, crystal clear, simple process, convenient use and good reproducibility.

Epoxy Silicone Oil synthesis Reference Process

1. Put D4, chain extender and catalyst alkali glue in the reaction vessel (the amount of catalyst is 0.6~1‰ of the total amount of synthesis), heat up to 105-110°C, keep warm for 3-3.5 hours, then raise the temperature to 140-150°C. , heat for 1 hour, and vacuum off at 140-150 °C for 30 minutes, cooling, discharging.

2. If the catalyst is tetramethylammonium hydroxide solid, first put 1⁄3-1⁄4 DMC and the total amount of catalyst (0.6-1‰), and then vacuum to 75-80 °C while heating, continue dehydration for half an hour until dehydration is completed, add The remaining DMC and IOTA 105-1000, then warmed to 105-110 ° C, heat for 3-3.5 hours, then warmed to 140-150 °C, heat for 1 hour, and vacuum at 140-150 °C for 30 minutes, cooling , discharge (from 3% to 5% of the total amount of monomer, not off).

Reference Feeding Ratio

Molecular Weight                IOTA 105-1000                D4 or DMC Dosage

         4000                                 100                                    330

         6000                                 100                                    550

         8000                                 100                                    770

        10000                                100                                    990

        13000                                100                                   1320

        15000                                100                                   1540

        20000                                100                                   2090

        25000                                100                                   2640

Instructions

The above process and feeding ratio are for reference only, please adjust according to your actual situation.

Packaging and Storage

1. 25 KG, packed in 50 KG plastic drums or 200 KG iron drums.

2. Load into clean and dry containers and store in a well-ventilated and dry warehouse.

3. This product is transported as non-toxic and non-hazardous.

4. Shelf life: 3 years
